Membuat Menu dan Sub Menu Responsive dengan bootstrap

Pada kesempatan kali ini saya ingin berbagi sedikit tentang bagaimana membuat menu dan sub menu atau biasa kita sebut dengan NAVBAR . yaitu sebuah baris menu yang terdapat pada halaman depan yang biasanya terletak dibagian atas halam website secara bertahap (step by step).

Dalam bootstrap , sudah di sediakan class untuk membuat menu navigasi, bahkan responsive tentunya. Berikut cara membuat nya. Untuk mulai tutorial ini yang perlu disediakan adalah :

Framework bootstrap
File php/html
Library jquery

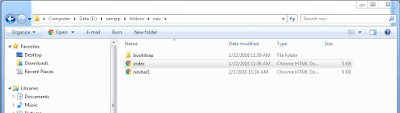

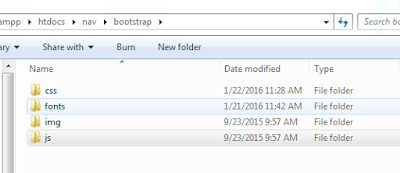

Pastikan didalam folder bootstrap ada folder seperti susunan berikut ini.

Selanjutnya buat file index.html seperti berikut :


<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>Navbar</title>

    <!-- Bootstrap -->
    <!--<link href="http://maxcdn.bootstrapcdn.com/bootstrap/3.2.0/css/bootstrap.min.css" rel="stylesheet">-->
<link href="bootstrap/css/bootstrap.min.css" rel="stylesheet">
    <!-- HTML5 Shim and Respond.js IE8 support of HTML5 elements and media queries -->
    <!-- WARNING: Respond.js doesn't work if you view the page via file:// -->
    <!--[if lt IE 9]>
      <script src="https://oss.maxcdn.com/html5shiv/3.7.2/html5shiv.min.js"></script>
      <script src="https://oss.maxcdn.com/respond/1.4.2/respond.min.js"></script>
    <![endif]-->
  </head>
  <body>

  </body>
</html>

Kalau diperhatikan syntax diatas, tujuannya adalah untuk menghubungkan dengan library bootsrap dengan cara menuliskan <link .... > diantara tag <head>....</head>

<link href="bootstrap/css/bootstrap.min.css" rel="stylesheet">

Selanjutnya bagaimana membuat struktur menu dan sub menu untuk tampil di bagian atas atau biasa disebut Navigasi. Dalam Framework bootstrap menu dan sub menu disebut sebagai navbar. Sekarang sisipkan secript berikut diantara tag <body>...</body>


<nav class="navbar navbar-inverse navbar-fixed-top" role="navigation">
  <div class="container-fluid">
    <!-- Brand and toggle get grouped for better mobile display -->
    <div class="navbar-header">
      <button type="button" class="navbar-toggle" data-toggle="collapse" data-target="#bs-example-navbar-collapse-1">
        <span class="sr-only">Toggle navigation</span>
        <span class="icon-bar"></span>
        <span class="icon-bar"></span>
        <span class="icon-bar"></span>
      </button>
      <a class="navbar-brand" href="#">WebGOS</a>
    </div>


    <!-- Collect the nav links, forms, and other content for toggling -->
    <div class="collapse navbar-collapse" id="bs-example-navbar-collapse-1">
      <ul class="nav navbar-nav">
        <li><a href="#">Home</a></li>
        <li><a href="#">Product</a></li>
        <li class="dropdown">
          <a href="#" class="dropdown-toggle" data-toggle="dropdown">Download <span class="caret"></span></a>
          <ul class="dropdown-menu" role="menu">
            <li><a href="#">Ebook</a></li>
            <li><a href="#">Software</a></li>
            <li><a href="#">Video Tutorial</a></li>
            <li class="divider"></li>
            <li><a href="#">Article</a></li>
            <li class="divider"></li>
            <li><a href="#">About</a></li>
          </ul>
        </li>
        <li class="dropdown">
          <a href="#" class="dropdown-toggle" data-toggle="dropdown">Documentation <span class="caret"></span></a>
          <ul class="dropdown-menu" role="menu">
            <li><a href="#">Doc PDF</a></li>
            <li><a href="#">Doc ODT/DOCX</a></li>
          </ul>
        </li>
      </ul>
      <form class="navbar-form navbar-left" role="search">
        <div class="form-group">
          <input type="text" class="form-control" placeholder="Search">
        </div>
        <button type="submit" class="btn btn-default">Submit</button>
      </form>
      <ul class="nav navbar-nav navbar-right">
        <li><a href="#"><span class="glyphicon glyphicon-user"></span> User Login</a></li>
        <li class="dropdown">
          <a href="#" class="dropdown-toggle" data-toggle="dropdown"><span class="glyphicon glyphicon-cog"></span> <span class="caret"></span></a>
          <ul class="dropdown-menu" role="menu">
            <li><a href="#">Profile</a></li>
            <li><a href="#">Akun</a></li>
            <li><a href="#">About</a></li>
            <li class="divider"></li>
            <li><a href="#">Logout</a></li>
          </ul>
        </li>
      </ul>
    </div><!-- /.navbar-collapse -->
  </div><!-- /.container-fluid -->
</nav>
<!-- jQuery (necessary for Bootstrap's JavaScript plugins) -->
    <script src="bootstrap/jquery/jquery.min.js"></script>
    <!-- Include all compiled plugins (below), or include individual files as needed -->
    <script src="bootstrap/js/bootstrap.min.js"></script>

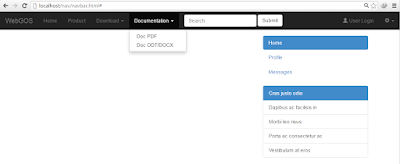

Setelah halaman index.php di sisipkan tag navigasi tesersebut, maka navbar sudah bisa dipanggil melalui browser dan hasilnya seperti gambar dibawah.

Sehingga code selengkapnya bisa dilihat seperti berikut ini.


<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>Navbar</title>


    <!-- Bootstrap -->
    <!--<link href="http://maxcdn.bootstrapcdn.com/bootstrap/3.2.0/css/bootstrap.min.css" rel="stylesheet">-->
<link href="bootstrap/css/bootstrap.min.css" rel="stylesheet">
    <!-- HTML5 Shim and Respond.js IE8 support of HTML5 elements and media queries -->
    <!-- WARNING: Respond.js doesn't work if you view the page via file:// -->
    <!--[if lt IE 9]>
      <script src="https://oss.maxcdn.com/html5shiv/3.7.2/html5shiv.min.js"></script>
      <script src="https://oss.maxcdn.com/respond/1.4.2/respond.min.js"></script>
    <![endif]-->
  </head>
  <body>
      <nav class="navbar navbar-inverse navbar-fixed-top" role="navigation">
  <div class="container-fluid">
    <!-- Brand and toggle get grouped for better mobile display -->
    <div class="navbar-header">
      <button type="button" class="navbar-toggle" data-toggle="collapse" data-target="#bs-example-navbar-collapse-1">
        <span class="sr-only">Toggle navigation</span>
        <span class="icon-bar"></span>
        <span class="icon-bar"></span>
        <span class="icon-bar"></span>
      </button>
      <a class="navbar-brand" href="#">WebGOS</a>
    </div>

    <!-- Collect the nav links, forms, and other content for toggling -->
    <div class="collapse navbar-collapse" id="bs-example-navbar-collapse-1">
      <ul class="nav navbar-nav">
        <li><a href="#">Home</a></li>
        <li><a href="#">Product</a></li>
        <li class="dropdown">
          <a href="#" class="dropdown-toggle" data-toggle="dropdown">Download <span class="caret"></span></a>
          <ul class="dropdown-menu" role="menu">
            <li><a href="#">Ebook</a></li>
            <li><a href="#">Software</a></li>
            <li><a href="#">Video Tutorial</a></li>
            <li class="divider"></li>
            <li><a href="#">Article</a></li>
            <li class="divider"></li>
            <li><a href="#">About</a></li>
          </ul>
        </li>
        <li class="dropdown">
          <a href="#" class="dropdown-toggle" data-toggle="dropdown">Documentation <span class="caret"></span></a>
          <ul class="dropdown-menu" role="menu">
            <li><a href="#">Doc PDF</a></li>
            <li><a href="#">Doc ODT/DOCX</a></li>
          </ul>
        </li>
      </ul>
      <form class="navbar-form navbar-left" role="search">
        <div class="form-group">
          <input type="text" class="form-control" placeholder="Search">
        </div>
        <button type="submit" class="btn btn-default">Submit</button>
      </form>
      <ul class="nav navbar-nav navbar-right">
        <li><a href="#"><span class="glyphicon glyphicon-user"></span> User Login</a></li>
        <li class="dropdown">
          <a href="#" class="dropdown-toggle" data-toggle="dropdown"><span class="glyphicon glyphicon-cog"></span> <span class="caret"></span></a>
          <ul class="dropdown-menu" role="menu">
            <li><a href="#">Profile</a></li>
            <li><a href="#">Akun</a></li>
            <li><a href="#">About</a></li>
            <li class="divider"></li>
            <li><a href="#">Logout</a></li>
          </ul>
        </li>
      </ul>
    </div><!-- /.navbar-collapse -->
  </div><!-- /.container-fluid -->
</nav>


    <!-- jQuery (necessary for Bootstrap's JavaScript plugins) -->
    <script src="bootstrap/jquery/jquery.min.js"></script>
    <!-- Include all compiled plugins (below), or include individual files as needed -->
    <script src="bootstrap/js/bootstrap.min.js"></script>
  </body>
</html>

Demikian Tutorial membuat navbar dengan library bootstrap. Selamat belajar. Thanx
